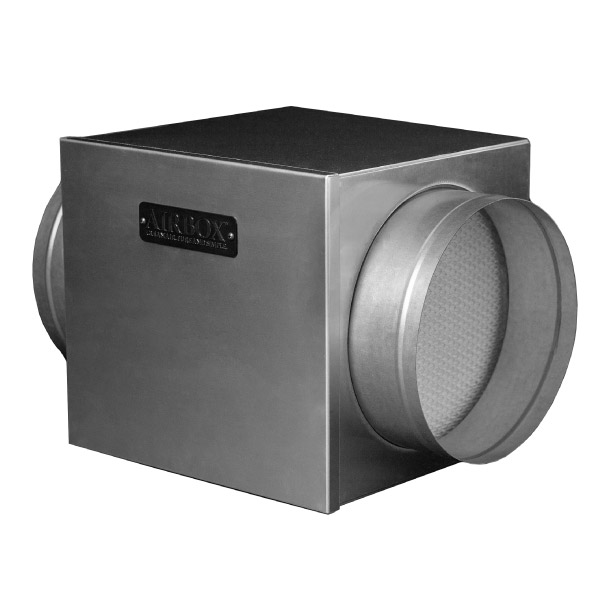

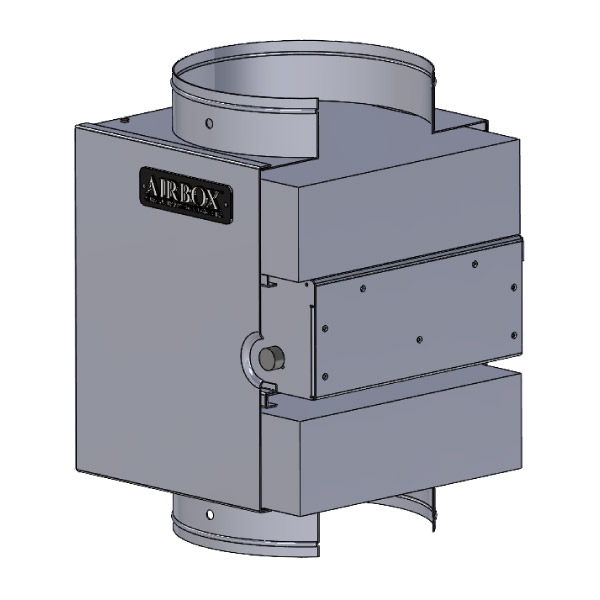

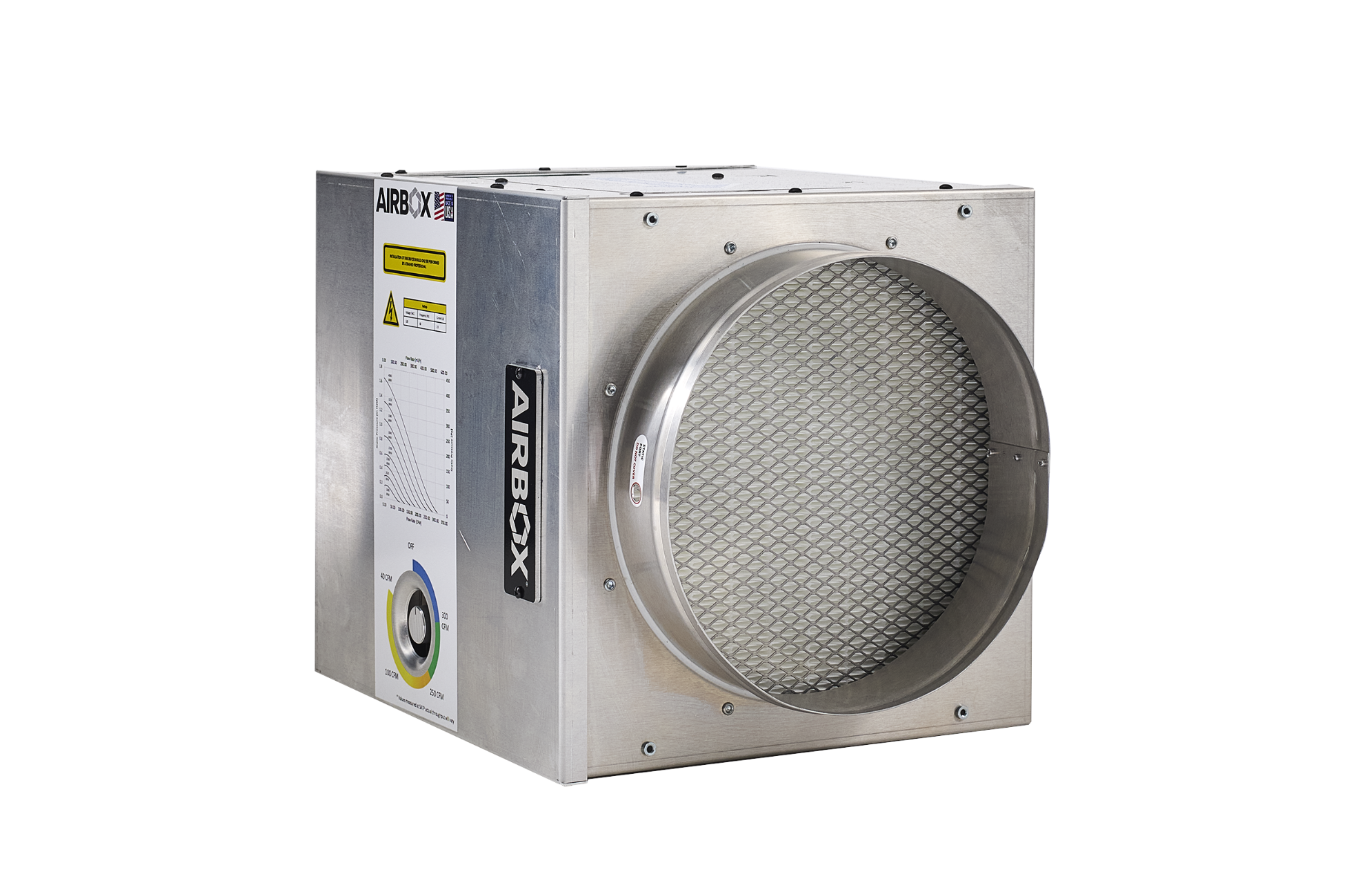

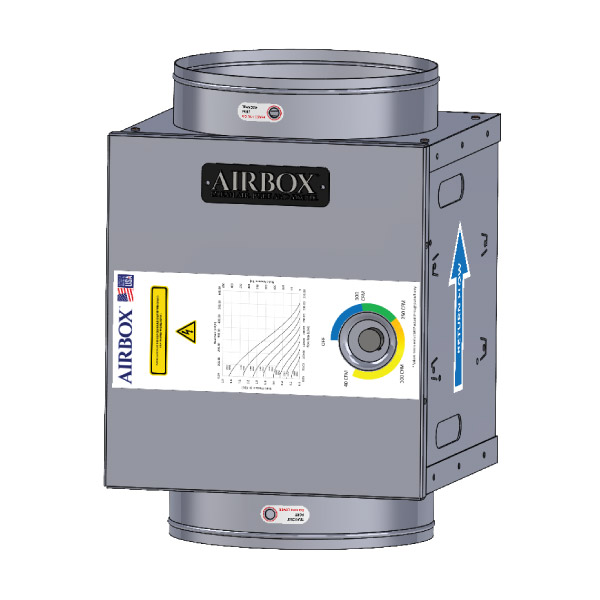

The AirBox Summit Series is one of the best air cleaning units for spaces like dental facilities where a discreet, ducted solution is preferred or required.
Installed in the ceiling, the Summit air cleaner pulls polluted air with particles and irritants out of the room and filters it through a 2-stage filtration process. As the now clean air is pushed back into the room, it creates a vertical laminar airflow that emulates cleanroom air filtration practices.
Key Benefits
Energy Conservation (IAQP)
Can be used for ASHRAE Standard 62.1 Indoor Air Quality Procedure (IAQP) for energy reduction or possible reduction of outdoor air through the use of recirculated and purified air, while maintaining all design compounds within the building under their design limits
Reliable Efficiency
Direct-drive variable speed, high-efficiency fan motor with single intake plenum provides increased system dependability and efficiency by eliminating drive coupling
Absolute Filtration
Provides particulate and/or chemical contaminant control utilizing a 2-stage filtration system
Minimal Maintenance
Automatic and remote scheduling to reduce energy consumption by running unit during occupied times and optimize longevity of filters through the use of on-board sensors for accurate filter life estimation, rather than time-based filter change intervals
Supplementary Compliance
Compliance with ASHRAE Standard 241 through third-party bioaerosol testing and establishment of an Infection Risk Management Mode (IRMM)
Specifications
COMPLIANCE AND PERFORMANCE
SPECIFICATIONS
ASHRAE 241-2023 |
Compliant System Category: In-Duct (Occupied Zone) |
UL Listed | File Number E518053 |
CARB | Certified |
IEST-RP-CC007 | Certified 99.99% HEPA Filter |
Bioaerosol Testing | Available upon Request |
ELECTRICAL SPECIFICATIONS
Operating Voltage | 110/120 VAC |
Motor | 115VAC, 50/60HZ, Ball Bearing, IP54 Rated UL Listed: File number E319742 |
Wiring | 22AWG – 16AWG |
Connectors | Deutsch DT, IP68 Rated |
TECHNICAL SPECIFICATIONS
Unit Weight | 20 lbs |
Unit Size | 13.5″H x12.5″W x 18″L |
Maximum Nominal Air Flow Rate |
300 CFM (VACSi 243 CFM) |
Controls | Standard manual control knob or Optional Smart Fleet Management System (IOT) allowing for remote air flow adjustment and scheduling of devices. |
Enclosure Material | Aircraft Grade Aluminum Alloy with Insulation kit. VOC Content: None |
Duct sizes | Trade size 10 |
Additional Features | Comes with junction box with knockouts for optional hardwire installation |
Warranty | Limited Lifetime Warranty. Lifetime Warranty on material and workmanship. 5 Year warranty on fan and motor package inclusive of electrical. |
System Construction and Components
- Aircraft grade aluminum alloy enclosure and motor box
- Seamless maintenance with easy change filter mechanisms
- 110/120 Volt power input for ease of installation within any space
- IP68 rated Deutsch Connectors
- Junction box with knockouts for optional hardwire installation
Optimized Controls
- Cellular connected controls make this installation dependable for contamination control
- Optimize energy efficiency by scheduling your system during occupied hours
- Integrated Differential Pressure Filter Sensors provides for efficient maintenance by only changing filters when necessary and simplifying maintenance schedules
- Easy configuration for Infection Risk Management Mode
High Quality Filtration
- Dual MERV 9A pre-filters
- Certified HEPA filters with minimum efficiency of 99.99% @ 0.3 microns
- Chem Shield Advanced Molecular Adsorbent to target specific unwanted Volatile Organic Compounds (VOCs) – Swappable with Certified HEPA filter
SUMMIT Series Filtration
1st Filtration Stage
ANTIMICROBIAL FILTER
- Merv 9 4″ Radial Pleated Polyester
- Treated with Microban® Aegis Microbe Shield®
RECOMMENDED TO CHANGE FILTER EVERY
6 MONTHS
FINAL FILTRATION STAGE
PURIFYING HEPA
- Certified 99.99%
- Effective 4″ Pleated Glass Media
- Treated with Microban Aegis Microbe Shield®
RECOMMENDED TO CHANGE FILTER EVERY 2 YEARS
SUMMIT Series Performance
ENERGY CONSUMPTION
(WATTS)
AIRFLOW RATE
(CFM)
VACSi INFECTIOUS AEROSOLS
(CFM)
6
40
32
20
100
81
70
250
203
153
300
243
