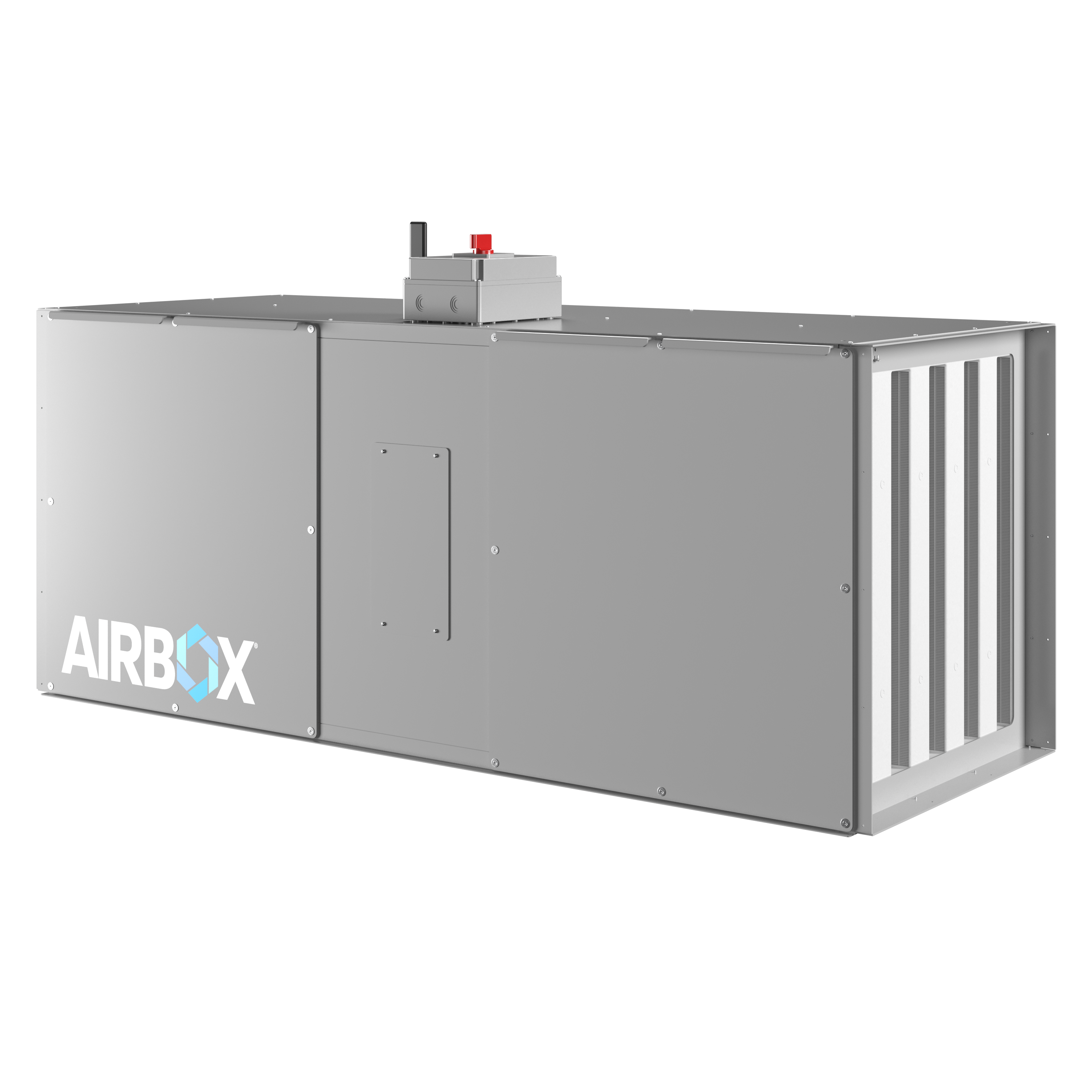

The Vortex 4000 HVP

Introducing the first dual-purpose, multi-use High-Volume Purification Unit – Capable of up to 4,000 CFM (Cubic Feet per Minute) Clean Airflow

Key Benefits

Dual Compliance (IAQP and 241)

Can be used for ASHRAE Standard 62.1-2022 Indoor Air Quality Procedure (IAQP) for energy reduction through the use of recirculated and purified air to reduce outdoor air intake, and ASHRAE Standard 241 – Control of Infectious Aerosols for infection risk management in time of heightened risk

Cost Effective

Provides a cost-effective, energy-efficient alternative to a fleet of portable air cleaners

Proven Filtration

Provides particulate and chemical contaminant control primarily utilizing a 4-stage filtration system

Adaptable Installation

Optimized installation and operation with multiple integration applications and mounting configurations

Reliable Efficiency

Direct-drive variable speed, high-efficiency fan motor with single intake plenum provides increased system dependability and efficiency by eliminating drive coupling

Contact AirBox Engineering Today

Think of it as central air purification that enables energy savings and infection risk management into your building.

As the first ever dual-purpose air purifier, the Vortex 4000 HVP was designed to meet the stringent requirements of both ASHRAE Standard 241-2023 IRMM, focused on minimizing the risk of airborne viral transmission, and ASHRAE Standard 62.1-2022’s Indoor Air Quality Procedure (IAQP), which dictates minimum ventilation rates needed to ensure safe and healthy indoor air quality while effectively reducing energy consumption and promoting sustainability and decarbonization goals. The unit’s unique design enables it to function at 2,000 CFM during normal operation (IAQP), and at a powerful 4,000 CFM during Infection Risk Management Mode (IRMM), as per ASHRAE Standard 241.

With new indoor air quality and ventilation standards in place to define acceptable indoor air quality, promote resiliency during times of heightened risk, and mitigate adverse health effects to building occupants, AirBox is an ideal solution for engineers and building owners.

Specifications

Vortex 4000 Vortex 4000ex

COMPLIANCE AND PERFORMANCE
SPECIFICATIONS

ASHRAE 241-2023 Compliant
ASHRAE 62.1-2022 Compliant
UL Listed Listing in progress
IEST-RP-CC007
US DOE-STD-3020-2015		 Certified 99.99% @ 0.3 microns HEPA Filter
Bioaerosol Testing Available upon Request
Efficacy Testing Available upon Request

ELECTRICAL SPECIFICATIONS

Operating Voltage 3~ 230 VAC
ECM Fan 3~ 230 VAC, 50/60HZ, Ball Bearing, IP54 Rated UL Listed
Connectors Deutsch DT, IP68 Rated

TECHNICAL SPECIFICATIONS

Unit Weight 260 lbs
Unit Size 26”H x 24”W x 63.5”L
Maximum Nominal
Air Flow Rate		 4,000 CFM (IAQP: 2,000 CFM)
Controls Standard manual control and AirBox Advanced Operating System (IOT) allowing for remote adjustment
Enclosure Material
and Finish		 Aircraft Grade Aluminum Alloy Outside Skin with Structural Steel Frame Powder Coat Finish
Additional Features Differential Pressure and TVOC sensors for concentration and filter life monitoring
Warranty Transferable Limited Lifetime Warranty. Lifetime Warranty on material and workmanship. 5 Year warranty on fan and motor package inclusive of electrical.

COMPLIANCE AND PERFORMANCE
SPECIFICATIONS

ASHRAE 241-2023 Compliant
ASHRAE 62.1-2022 Compliant
UL Listed Listing in progress
IEST-RP-CC007
US DOE-STD-3020-2015		 Certified 99.99% @ 0.3 microns HEPA Filter
Bioaerosol Testing Available upon Request
Efficacy Testing Available upon Request

ELECTRICAL SPECIFICATIONS

Operating Voltage 3~ 230 VAC
ECM Fan 3~ 230 VAC, 50/60HZ, Ball Bearing, IP54 Rated UL Listed: File Number E319742
Connectors Deutsch DT, IP68 Rated

TECHNICAL SPECIFICATIONS

Unit Weight 330 lbs
Unit Size 35.75”H x 27.25”W x 64.25”L
Maximum Nominal
Air Flow Rate		 4,000 CFM (IAQP: 2,000 CFM)
Controls Standard manual control and AirBox Advanced Operating System (IOT) allowing for remote adjustment
Enclosure Material
and Finish		 Aircraft Grade Aluminum Alloy Outside Skin with Structural Steel Frame, R6 insulation, and Powder Coat Finish.
Additional Features Differential Pressure and TVOC sensors for concentration and filter life monitoring
Warranty Transferable Limited Lifetime Warranty. Lifetime Warranty on material and workmanship. 5 Year warranty on fan and motor package inclusive of electrical.
DOWNLOAD THE VORTEX 4000 HVP SPECIFICATION
DOWNLOAD THE VORTEX 4000ex HVP SPECIFICATION

System Construction and Components

  • Durable powder coat finish and all aluminum sheet metal skin for leak-free construction
  • Seamless maintenance with well-designed slide-out filter racks and cam-lock style compression seals
  • Built to last with a transferable lifetime warranty

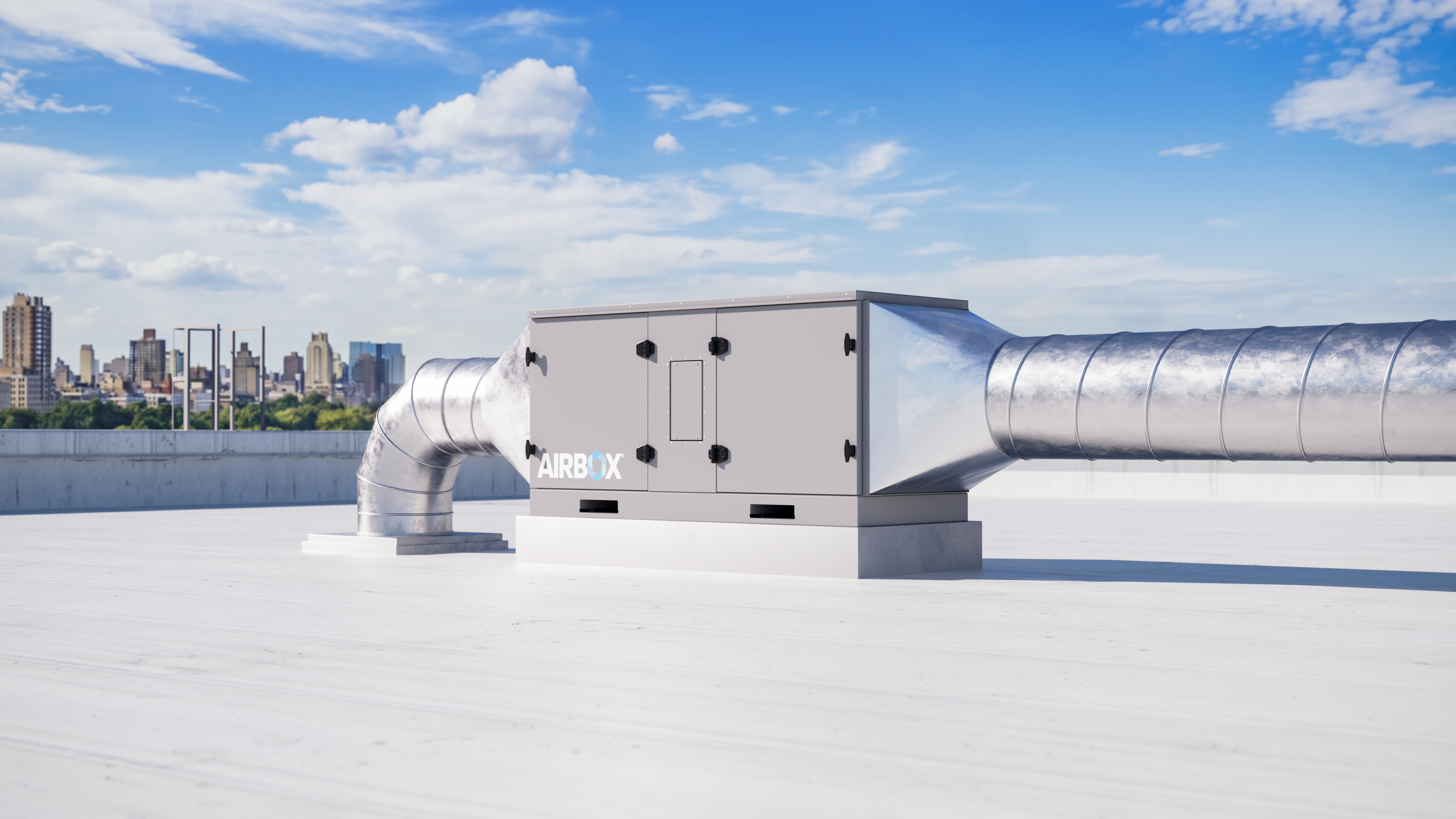

  • High-quality R12 Foam insulation between double wall construction for increased weatherability in the outdoor model: Vortex 4000ex HVP

Optimized Controls

  • Cellular connected controls make this installation dependable for contamination control
  • Optimize energy efficiency by scheduling your system during occupied hours
  • A combination of VOC and integrated differential pressure sensors allows for optimizing filter life through efficient maintenance
  • Integration with Building Management Systems makes this product versatile for any building operator
  • Easy configuration for Infection Risk Management Mode

High Quality Filtration

  • Dual MERV 9A pre-filters
  • Chem Shield Advanced Molecular Adsorbent Filters with various proprietary blends of customizable adsorbent media to target specific molecular contaminants such as Volatile Organic Compounds (VOCs)
  • Certified HEPA filters with minimum efficiency of 99.99% @ 0.3 microns

Installation Support

An Integration Guide will be provided to give guidance for various types of installation, inclusive of indoor and various mechanical system layouts.

An Installation Guide will also be provided for detailed schematics in installation procedure for various types of installs. This will include controls integration, electrical, mechanical, and operational instructions for final installation.

Submittals include shop drawings which indicate assembly, unit dimensions, weight loading, required clearances, construction details, field connection details, electrical characteristics, and connection requirements.

Vortex 4000 HVP Integrations

Vortex 4000 HVP Performance
